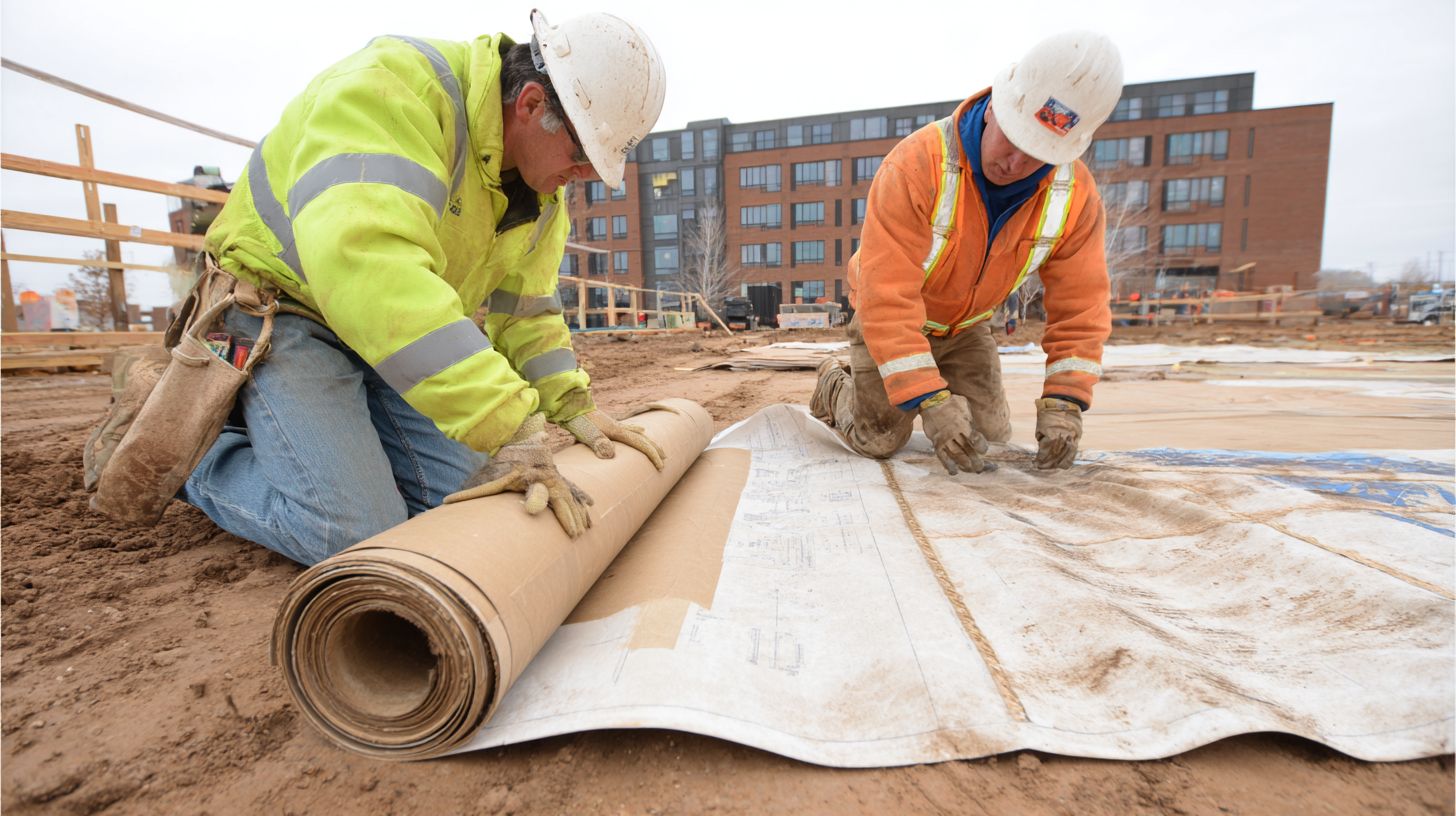

Protecting the Floors: Building Requirements for Masonite and Ram Board.

A single slip on an unprotected construction floor can derail timelines and inflate costs by thousands, according to OSHA incident reports. Safeguarding surfaces with Masonite and Ram Board isn't optional-it's essential for compliance and efficiency.

Tip: Need a licensed NYC mover? Find verified moving companies on Building Health X — vetted, insured, and local.

Discover material overviews, thickness options, surface prep, installation techniques, code requirements, safety standards, and removal protocols to ensure flawless protection.

Masonite: Material Overview

Masonite, invented in 1924, is engineered hardboard made from 100% wood fibers under 50,000 PSI pressure, offering superior paint splatter resistance for residential jobs. H.J. Mason patented this process, creating a dense panel from 90% wood fiber and 10% wax binder. It stands out for floor damage prevention in construction.

Standard sizes include 3/16" x 4' x 8' sheets weighing 36 lbs each. Key specs feature 1,200 PSI tensile strength and a Class C fire rating, making it suitable for construction site safety. Contractors value its moisture barrier properties during renovations.

Common applications cover hardwood floor protection, tile safeguarding, and laminate covers. Use it in heavy traffic areas like hallways or workshops to block spills and debris. Costs range from $18-22 per 32 sq ft sheet, balancing durability with affordability.

For installation guidelines, acclimate sheets to room conditions before use. Overlap edges and tape seams for full surface protection. This painter's board excels in residential construction and DIY projects.

Thickness and Grade Options

Masonite offers three thickness grades: 1/8" (light duty, 0.125 24 lbs/sheet), 3/16" (standard, 0.1875 36 lbs), and 1/4" (heavy duty, 0.25 48 lbs). Each meets ASTM D1037 compliance for hardboard panels. Select based on weight capacity and project needs.

Thickness	Weight	Load Capacity	Best For	Price/sq ft
1/8"	0.75 psf	Foot traffic	Light duty	$0.55
3/16"	1.1 psf	Furniture moving	Standard use	$0.68
1/4"	1.5 psf	Heavy equipment	Heavy duty	$0.89

Match thickness to floor type for optimal results. Use 3/16" for hardwood, as it handles moderate loads without denting. Opt for 1/4" on tile to prevent cracks from dropped tools.

Prepare subfloors by cleaning and leveling before laying panels. Cut to fit with a utility knife, and seal edges for spill protection. This ensures building codes compliance and easy removal post-project.

Ram Board: Material Overview

Ram Board is a 10-mil thick, fiber-reinforced roll-out floor protection with patented puncture-resistant weave, covering 38,000 sq ft per pallet. The standard version comes as a 35mil roll measuring 100' x 38" and weighing 125 lbs. Contractors value its breathable polyethylene topcoat that prevents moisture trapping during construction.

This tear-resistant material walks wet and holds an OSHA-compliant grip rating for construction site safety. It suits applications on concrete, VCT, carpet, and wood subfloors. Use it for hardwood floor protection or tile floor safeguarding in heavy traffic areas.

Compared to Masonite, Ram Board costs about $0.42 per sq ft versus Masonite's $0.68. The HD version at 42mil thickness adds extra durability for high-rise projects. Always check manufacturer specs for exact coverage and roll weights.

For installation guidelines, overlap edges and use seam taping to create a seamless barrier. Its non-slip surface supports spill protection and dust containment on job sites. Pair it with walk-off mats for better floor damage prevention.

Thickness and Durability Ratings

Ram Board offers four thicknesses: Standard (35mil, 150 PSI puncture), Plus (38mil, 200 PSI), HD (42mil, 300 PSI), and MegaBoard (60mil, 500 PSI impact resistance). These options meet ASTM specifications for viral penetration resistance under ASTM F1671. Select based on weight capacity needs, like the HD model's 10,000 lb forklift rating.

Thickness	Puncture Resistance	Abrasion Rating	Weight Capacity	Use Case
Standard 35mil	150 PSI	High	Moderate	Residential construction, painter's board
Plus 38mil	200 PSI	High	High	Commercial builds, laminate floor cover
HD 42mil	300 PSI	Very High	10,000 lb forklift	High-rise projects, industrial sites
MegaBoard 60mil	500 PSI impact	Extreme	Extreme	Hospital flooring protection, heavy equipment

High-rise projects often specify 42mil minimum per general contractor feedback for puncture-resistant board performance. This thickness handles renovation debris and drywall mud barriers effectively. Test subfloor preparation ensures clean installation surfaces.

For builder best practices, acclimate rolls during a short period to match site temperature tolerance and humidity resistance. The breathable membrane aids moisture barrier needs without trapping water under the temporary floor covering. Review technical data sheets for handling instructions and storage conditions.

Surface Preparation Requirements

Proper surface preparation sets the foundation for successful installation of Masonite and Ram Board. Sweep away debris, keep temperatures between 40-90 degreesF, maintain humidity below 70% RH, and allow a 24-hour acclimation period per manufacturer specs. This step ensures strong adhesion and prevents common issues like bubbling or lifting during use.

Start by clearing the floor of all loose materials. Use a broom or vacuum to remove dirt, dust, and small particles that could compromise the temporary floor covering. A clean surface promotes better contact and extends the life of your floor protection materials.

Next, check for levelness and repair any major imperfections. Follow these key installation guidelines in order to meet building requirements for protecting floors on construction sites.

1. Remove all debris larger than 1/16 inch, as particles this size or bigger will void the warranty.
2. Verify flatness within 1/4 inch over 10 feet tolerance using a straightedge or level.
3. Tape down thresholds and transitions securely with painter's tape to avoid tripping hazards and ensure construction site safety.
4. Acclimate materials for 24 hours at job site temperatures to adjust to local conditions.
5. Test subfloor moisture levels below 5 pounds per 1,000 square feet in 24 hours using a calcium chloride test kit.

Temperature plays a critical role in performance. Refer to this chart for temperature tolerance ranges to guide your prep work.

Product	Minimum Temperature ( degreesF)	Maximum Temperature ( degreesF)
Masonite	32	110
Ram Board	15	140

Experts recommend storing rolls or panels in a dry area away from direct sunlight before acclimation. This practice supports floor damage prevention in high-traffic areas like hallways or workshops, ensuring compliance with manufacturer specs and warranty details.

Installation Guidelines

Standard installation takes 15-20 minutes per 1,000 sq ft using 3M 5906 tape and utility knife scoring. This process ensures floor protection for masonite and Ram Board during construction. Follow these steps for construction site safety and floor damage prevention.

Unroll the temporary floor covering perpendicular to traffic patterns first. Cut 12-inch overhangs for edges and doorways. This setup provides spill protection and moisture barrier benefits.

Secure edges with 2-inch tape every 10 feet to prevent lifting. Pressure wash concrete surfaces before laying for clean subfloor preparation. Double-layer high-traffic areas like hallways for added durability.

A crew of two can cover 1,000 sq ft in about 1 hour. Common errors include insufficient taping, which leads to failures. Proper steps meet building requirements and OSHA standards for surface protection.

Cutting and Sizing Techniques

Use heavy-duty utility knives with tungsten carbide blades and straight edges; score Ram Board 3 times, snap along perforation lines for clean 1/16-inch edges. Essential tools include the Milwaukee Fastback knife, 48-inch aluminum straight edge, and 3M Precision trimmer. These ensure precise custom cutting for hardwood floor protection and tile floor safeguarding.

For score-snap method on Ram Board, mark lines clearly then fold and snap. Use a circular saw with dust port for thicker masonite panels to minimize dust containment issues. Pre-cut door jambs 1/4 inch undersized for easy fit during installation.

Allow 8-12% extra material for cuts and waste when calculating square footage. This accounts for overlaps and errors in renovation projects. Techniques support DIY floor protection and contractor supplies needs.

Always check product dimensions and perforation lines before starting. Acclimate rolls to room temperature for best results. These practices enhance puncture-resistant board performance in heavy traffic areas.

Seaming and Overlap Methods

Proper seaming prevents most trip hazards; use 4-inch wide 3M 5906 tape with 6-8 inch overlaps on Ram Board, 2-inch butt joints on Masonite. For Ram Board, apply 8-inch overlap plus 4-inch tape on both sides. Masonite uses 1/8-inch gaps sealed with seam tape for breathable membrane properties.

Tape types like 3M 5906 and Polyken 232 offer strong adhesion for 30 days. In high-traffic zones, double tape and staple every 12 inches. This boosts tear-resistant material strength and non-slip surface reliability.

Overlap edges securely to create a continuous moisture barrier and paint splatter guard. Edge sealing prevents drywall mud barrier failures. Experts recommend these for commercial builds and residential construction.

Combine with walk-off mats for complete construction flooring setup. Proper methods reduce failures and ensure ASTM specifications compliance. Follow manufacturer specs for warranty details and durability ratings.

Building Code Compliance

Ram Board meets ASTM D2047 COF greater than 0.5 dry and greater than 0.4 wet, with ICC-ES report ESR-3522, while Masonite complies with UBC 25-2 fire rating. These standards ensure floor protection materials support construction site safety. Contractors rely on them for hardwood floor protection and tile safeguarding during builds.

Key building codes like IBC 2018 Chapter 23 outline floor protection needs in wood-framed structures. OSHA 1910.22 mandates slip resistance to prevent falls in heavy traffic areas. NFPA 701 addresses flame propagation for temporary coverings used near heat sources.

Local rules add layers of compliance. For example, California Title 24 requires a COF of 0.6 or higher on ramps. Always check jurisdiction-specific amendments before installation to avoid delays.

Standard	Requirement	Masonite	Ram Board
IBC 2018 Chapter 23	Floor protection in construction	Complies via fire-rated hardboard	Meets with tear-resistant roll-out
OSHA 1910.22	Slip resistance	Provides non-slip surface	ASTM D2047 COF >0.5 dry
NFPA 701	Flame propagation	UBC 25-2 fire rating	Low flame spread rating
CA Title 24	COF 0.6+ on ramps	Suitable with preparation	Exceeds wet/dry COF needs

Use this table to verify building codes compliance for your project. Pair with subfloor preparation and seam taping for full adherence in residential or commercial builds.

Traction and Safety Standards

Both Masonite and Ram Board exceed ADA 0.6 COF minimum. Ram Board's embossed surface achieves 0.82 dry/0.65 wet per independent BOT-3000 testing. These ratings ensure construction site safety on temporary floor coverings.

OSHA 1910.22(a) requires walking surfaces kept clean and dry. Slips often occur in heavy traffic areas during construction. Regular maintenance of these materials helps meet building requirements for protecting floors.

Experts recommend adding nonslip spray primer on polished concrete under these coverings. This boosts traction for workers carrying tools or materials. It provides extra spill protection in wet conditions.

Material	Dry COF	Wet COF	Test Method
Masonite	0.75	0.62	BOT-3000
Ram Board	0.82	0.65	BOT-3000

Choose non-slip surfaces like these for hardwood floor protection or tile floor safeguarding. They reduce risks in residential construction and commercial builds. Always follow installation guidelines for best results.

Removal and Disposal Procedures

Remove temporary floor covering within 30 days maximum to ensure floor damage prevention. Roll Ram Board from center-out for smooth detachment. Peel Masonite with a 5 degrees angle to prevent floor scuffing and achieve clean results.

Follow a step-by-step removal process for both products to maintain construction site safety. Score tape edges first to loosen bonds. Use a heat gun set to 300 degreesF on adhesive areas, then apply citrus-based remover like Krud Kutter, and finish with a tack cloth wipe.

For disposal methods, treat Ram Board as 80% recyclable material, specifically #2 HDPE, suitable for recycling centers. Classify Masonite hardboard panels as construction debris for landfill or approved waste facilities. Compare costs at $0.05 per square foot for landfill versus $0.12 for recycling to plan budgets effectively.

Experts recommend checking local building codes compliance for waste handling during renovation projects. Separate materials on-site to simplify disposal. This approach supports eco-friendly options and reduces project downtime.

Step-by-Step Removal Guide

Begin floor protection removal by scoring edges of seam taping and overlapping edges with a utility knife. This prevents tearing tear-resistant material or puncture-resistant board. Work in sections for control in heavy traffic areas.

Apply a heat gun at 300 degreesF to soften removable adhesive on Ram Board roll-out flooring. Gently lift from the center outward, rolling as you go. For Masonite painter's board, maintain a low 5 degrees peel angle to safeguard hardwood floors or tile surfaces.

Use citrus-based remover such as Krud Kutter on stubborn spots for spill protection residue. Wipe with a tack cloth for a residue-free finish. Test in a small area first to confirm compatibility with subfloor types.

Inspect floors after removal for any marks, ensuring hardwood floor protection and tile floor safeguarding held up. Document the process for project management tools and contractor records.

Disposal and Recycling Options

Segregate Ram Board for recycling due to its #2 HDPE composition, making up 80% recyclable content. Contact local facilities for drop-off guidelines on this breathable membrane. Avoid mixing with other construction waste.

Treat Masonite as standard construction debris, following OSHA standards for safe transport. Use dumpsters designated for hardboard panels in commercial builds or residential construction. Cut large sheets for easier handling if needed.

Weigh cost per square foot options: landfill at $0.05 versus recycling at $0.12. Factor in bulk orders savings for large coverage areas. Choose based on site-specific sustainability goals and supplier distributors.

Cost and Best Practices

Budget for disposal methods early in installation guidelines to avoid surprises. Recycling Ram Board supports low VOC emissions and eco-friendly practices despite higher per-square-foot costs. Landfill suits quick DIY floor protection jobs.

Implement builder best practices like labeling waste piles for efficient sorting. Train crews on handling instructions to minimize damage during removal. This ensures compliance with ASTM specifications for surface protection.

For high-rise projects or hospital flooring protection, partner with services offering volume recycling. Track square footage with a calculator for accurate cost estimates. Review manufacturer specs for warranty details on reusability where applicable.

Frequently Asked Questions

What are the key building requirements for using Masonite and Ram Board in floor protection?

Protecting the Floors: Building Requirements for Masonite and Ram Board involve ensuring proper installation to prevent damage from construction traffic. Masonite requires a smooth, clean subfloor and should be laid in overlapping sheets with taped seams, while Ram Board needs to be unrolled perpendicular to floor joists and secured with tape for optimal durability.

How does Masonite differ from Ram Board in building requirements for floor protection?

Protecting the Floors: Building Requirements for Masonite and Ram Board highlight Masonite's need for humidity control to avoid warping, as it's a hardboard product, whereas Ram Board, a heavy-duty cardboard, mandates reinforcement in high-traffic areas and can be walked on immediately after installation without special curing times.

What preparation steps are required before installing Masonite or Ram Board for floor protection?

Protecting the Floors: Building Requirements for Masonite and Ram Board start with sweeping the floor free of debris, repairing any cracks or uneven surfaces, and acclimating materials to the room's temperature. This ensures adhesion and prevents buckling during use.

Are there specific thickness recommendations for Masonite and Ram Board in construction floor protection?

Protecting the Floors: Building Requirements for Masonite and Ram Board recommend 1/8-inch Masonite for light-duty protection and 1/4-inch for heavier use, while Ram Board comes in 10-mil or 15-mil thicknesses, with 15-mil preferred for areas with equipment or machinery to meet building standards.

How should seams and edges be handled when installing Masonite or Ram Board for floor protection?

Protecting the Floors: Building Requirements for Masonite and Ram Board require staggering seams like bricklaying, overlapping edges by 4-6 inches, and sealing all joints with contractor-grade tape to create a seamless barrier against spills, dust, and foot traffic.

What are the removal and disposal guidelines for Masonite and Ram Board after floor protection use?

Protecting the Floors: Building Requirements for Masonite and Ram Board include careful removal by peeling from corners to avoid adhesive residue, followed by cleaning with mild soap if needed. Both are recyclable where facilities exist, reducing waste in compliance with green building practices.
